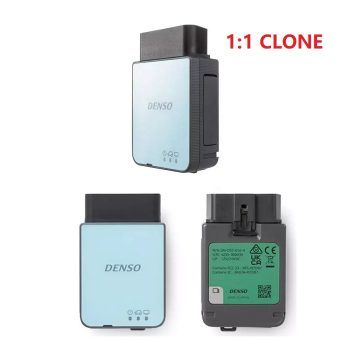

Denso DST 010A VCI Toyota,Honda and Subaru Dealer Scanner

Denso DST 010A VCI is the newest diagnostic interface which working for Toyota/Lexus,Honda and Subaru.The DST-010A interface comes with a USB2.0 Mini-DIN connector and bracket to hold the USB cable. In addition, the built-in wireless module allows Wi-Fi connection to a PC(No Bluetooth Function).

This is not Genuine Denso adapter ,but clone ones DST-010A with 1:1 functions.

DENSO DST 010A VCI Highlights:

1. it doesn’t support the cars before 2008 years.
2. We can offer remote installation and activate with charge fees.
3. Toyota Techstream installation 50usd per laptop,Subaru SSM4/3 insallation 40USD.
4. Honda iHDS Software 256GB Disk cost 70USD.

Free software links offer here ,You need Install yourself .

• Toyota GTS and GTS+ Software download link：
• Subaru SSM3 SSM4 Software download link:

Main Functions

• Reading and Clearing Fault Codes: Reads fault codes stored in the vehicle’s electronic control unit (ECU) and clears these codes after repairs.
• Real-Time Data Monitoring: Monitors various vehicle parameters in real-time, such as engine RPM, vehicle speed, fuel consumption, sensor data, and more.
• System Testing: Provides a range of system testing functions to test the working condition of key components like the engine, transmission, braking system, and airbag system.
• Vehicle Health Report Generation: Generates vehicle health reports to help users understand the overall condition of the vehicle and potential issues.
• Fault History Query: Stores and queries the vehicle’s fault history, helping to track and resolve recurring problems.

DENSO DST-010A Supporting Protocols

1. SAE-J2534-1 2004, SAE-J2534-2 2010 Passthru Driver
2. ISO-22900-1/2 MVCI with D-PDU Driver
3. ISO13400-1/2/3/4 DoIP Driver
4. CAN-BUS1 channel:HSCAN1/CANFD1: PIN 6/14
5. CAN-BUS2 channel:HSCAN2/CANFD2: PIN 3/11
6. 2-way K-Line *5:K1-Line: indicates K7 and K2-Line: K1,K9,K14,K15
7. ADC input: VBAT ADC input
8. Gigabit eCAT DB16 output
9. 100 Mbit USB2.0 HS network card
10. WIFI relay/bridge

Package Contents:

• 1 x Denso DST-010A VCI
• 1 x USB Cable [1 Meter]
• 1 x USB Bracket
