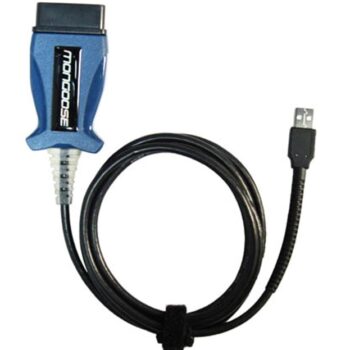

MONGOOSE PRO GM II Diagnostic Cable working GDS2/Tech2Win

MONGOOSE PRO GM is a multifunctional J2534 pass-throu adapter by DrewTech for GM vehicles diagnostics.Compare with GM MDI ,mongoosepro gm 2 is a low-cost but also same high-performance diagnostics interface.it will diagnostics for powertrain,chassis, body, anti-theft, and TPMS systems.
Mongoose Pro GM II support of GDS2 (global diagnostic system 2), SPS (service programming station), Tech2Win, and TIS2000/Global TIS programmer.

MONGOOSE GM Notices:

1. This is clone ones ,Not original DrewTech mongoose gm2  .
2. To make it work for Tech2Win on SAAB,You will need do pin modification as below manual guide.
   Clone mongoose gm modification-fix-pin1
3. V2016 GDS2 VMWare image on DVD,You can download on google and nativate install newest GDS2 software.
4. Not Support Techline Connect
5.

Protocols Supported:

• CAN pins 3-11, 6-14, 12-13
• Single Wire CAN pin 1
• J1850VPW / GM Class 2
• ISO 9141 / KWP pins 3, 6, 7, 8, 9, 12, 13
• GM UART
• ISO22900 Compliant for GM’s Tech2WIN software

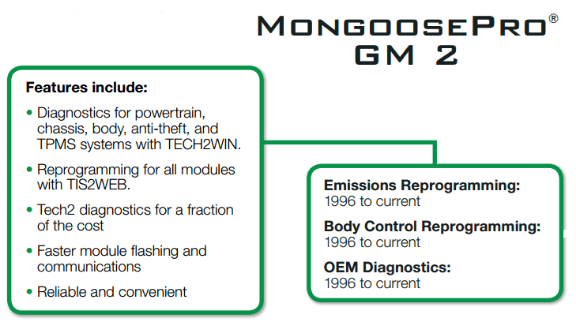

Mongoose PRO GM Features:

• Diagnostics functions via GDS2
• Diagnostics functions via Tech2WIN
• All Module Flash Programming with TIS2WEB(required yourself dealer account)
• Security system programming(required yourself dealer account)
