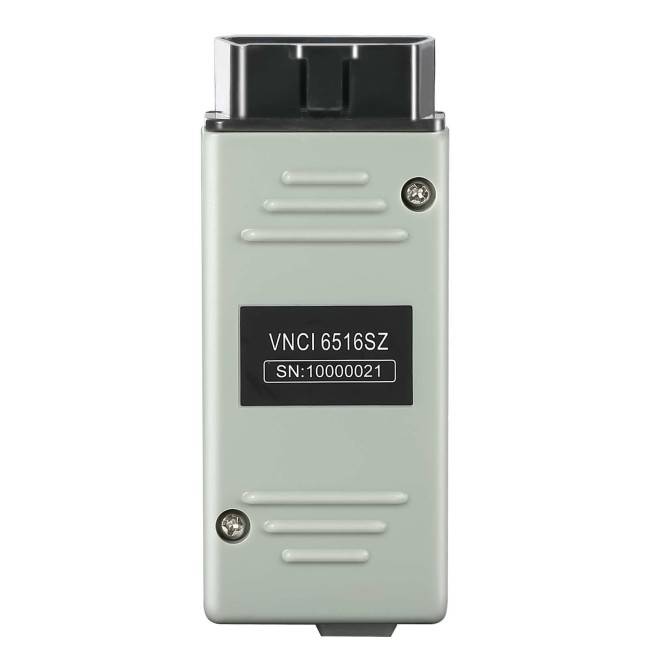

VNCI Suzuki 6516SZ VCI,Suzuki SDT-II Diagnostic Interface

VNCI Suzuki 6516SZ VCI is plug-and-play and can replace the original MTS6516 Suzuki tool.it can perform diagnostics, module programming, key matching and other operations on most Suzuki vehicles.
VNCI 6516SZ compatible with the original SDT-II software driver.No third-party software is required. it not able activate “Immobilizer Application”   for read anti-theft code and program key.
VNCI SUZUKI SDT-2 Interface supports 3-way CAN, 2-way UART, K line and other automotive communication protocols.It is Supports USB connection, WIFI direct connection, wireless LAN connection.

• Free download SDT-II Software here
• Download VNCI 6516SZ manager here
• Download BOSCH VCI Driver Installer R2_4_22_59

The SUZKI MTS6516 VCI is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems.
The MTS 6516 VCI is designed to connect the vehicle to a host PC computer application which then functions though the MTS 6516 VCI for data transfer and Electronic Control Unit (ECU) reprogramming.

VNCI Suzuki 6516SZ VCI Supported protocols:

• Three Independent CAN Controllers (ISO 11898-1)
• Three Two-Wire (High-Speed) CAN Transceivers (ISO11898-2)
• Low-Speed, Fault-Tolerant CAN transceiver (ISO 11898-3)
• Single-Wire CAN Transceiver (J2411)
• Two Independent K-Line Interfaces (software selec-table pins)
• L-Line Interface
• GM 5V UART (J2740)
• J1708
• SAE J1850 VPW
• SAE J1850 PWM
• Ford UBP
• Chrysler SCI (5V)
• Chrysler CCD
• Nissan DDL1
