HONDA HIM Tool, HDS Diagnostic system v3.104

HDNDA HIM Tool stands for Honda Interface Module- Honda Diagnostic System. HIM interfaces with a PC to run HONDA HDS scan software.HDS Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to 2020. Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. HDS supports CAN BUS system, and it can re-program the Auto ECU.

HDNDA HIM Tool notices:

1. HDS Software Version: V3.104.24 (password 12345,No Need Activation),Advise installed On Win7 or Win10
2. HONDA HDS installation Video

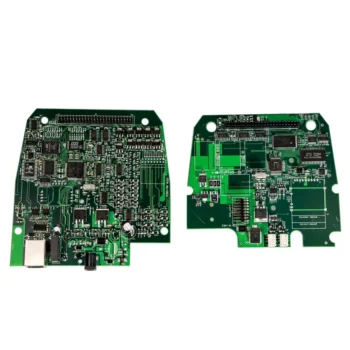

3. High Quality HONDA HDS Interface with Double Board.
4. It required COM port when connect HIM to PC; If your laptop without RS232 port,You can use USB to RS232 Converter
5. Support Honda vehicles from 1992-2021 year.
6. HONDA HDS Software Supports Multi-language：English, Spanish, French, Indonesian, Korean, Portuguese, Thai, Turkish, Vietnamese.

HDNDA HIM Tool Function:

1. Functions Supported by Honda/Acura Protocols

• Reading and decoding fault codes from control blocks memory
• Deleting fault codes
• Displays system current parameters in digital form
• Combined displaying of data
• Management of executive devices
• Logs keeping – writing and keeping of digital parameters in memory
• Special functions – changing of permissible settings of blocks, programming etc.

2. Functions Supported by OBD-II Protocols

• Mode $01 – Displays system current parameters in digital form (up to 8 parameters at once)
• Mode $02 – Displays parameters of freeze frame
• Mode $03 – Reading and decoding of fault codes from control block? memory
• Mode $04 – Deleting of fault codes (memory clearing)
• Mode $05 – Displays results of oxygen sensors
• Mode $06 – Displays results of changeably controlled systems and components
• Mode $07 – Displays results of constantly controlled systems and components
• Mode $08 – Management of executive devices
• Mode $09 – Displays car identification info

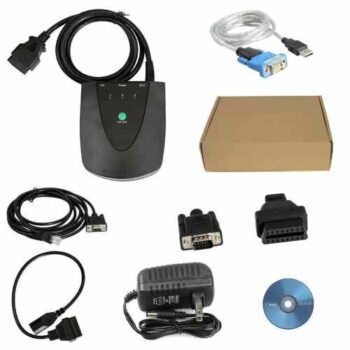

Honda HIM HDS Package List :

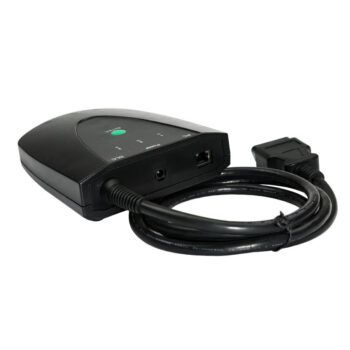

1. HIM HONDA INTERFACE
2. 3 Pin Cable

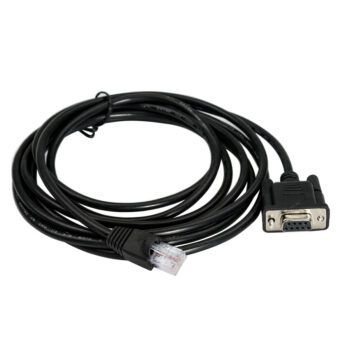

3. RS232 Cable
4. 2pcs Self test Adapter
5. AC Power Adapter
6. USB1.1 To RS232 Convert
