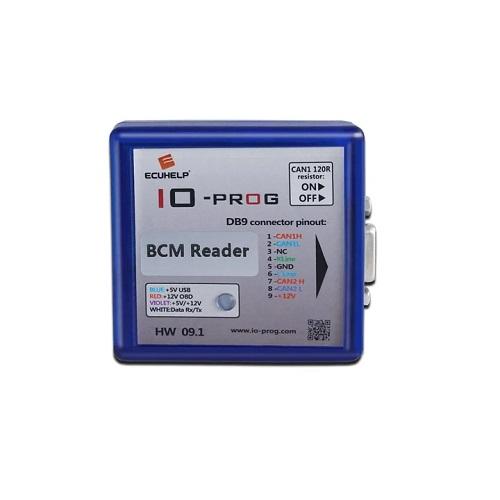

IO Prog Programmer, I/O Terminal GM ECU BCM Clone

IO Prog Programmer is a software and hardware solution designed for work with a great number of ECUs, BCM and TCM modules,which installed in GM,Opel,PSA and Ford vehicles.I/O Terminal support Safe Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) .Also software has bootpin recovery mode.Checksums testing and correction.

IO PROG programmer Notices:

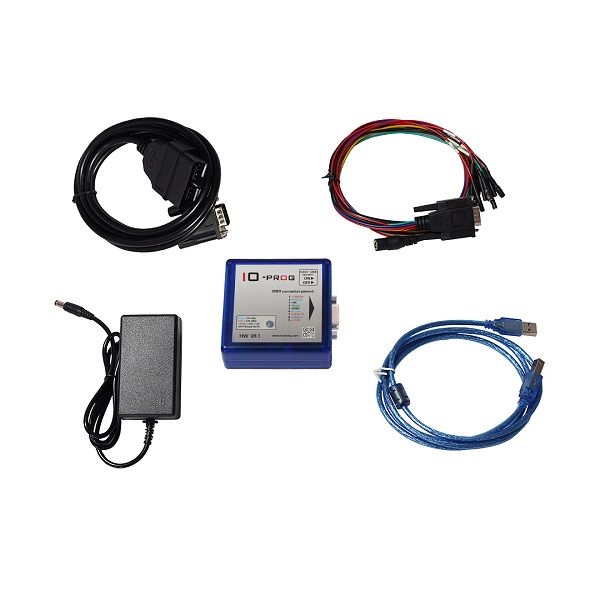

1. GM Full Version: ECU+BCM+TCM+EPS LICENSE for OPEL and GM

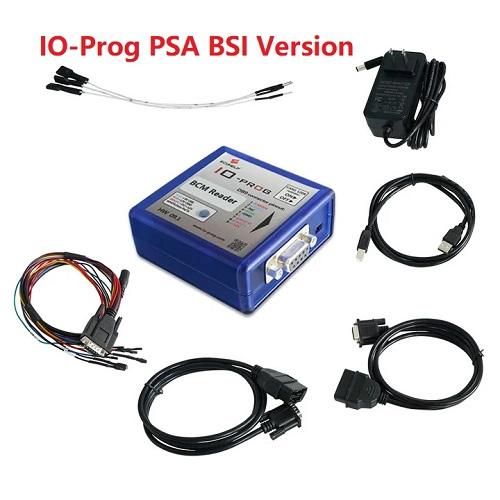

2. Lastest IO Prog PSA version:Based on GM Full version, ‌In addition,it add‌ed PSA BSI License and Ford Lear BCM MC9S12XEP768 read/write
3. BASIC:OPEL/GM ECU ONLY
4. This is Clone I/O Terminal Tool.
5. You can buy the upgrade card to update to PSA version with Full License.

Clone I/O Terminal update news:

• Relased on 2022/10/28 that added GM 5BSK CALCULATOR to calculate ECU Seed.You can cal it on ecuhelp.com
• Relased on 2022/11/21 that Resolved opel ecu E98 ,E84 read Failure.
• Relased on 2023/6/05 fixed bugs Delphi BCM could not read.
• Newest I/O TERMINAL MULTI TOOL V46

I/O Prog Functions Details :

1. IO Prog Programmer PSA BSI

• Siemens D76F0018 + 95160 KLINE (BSI-E0X-00 / BSI-F0X-00); EEPROM 95160 R / W, show PIN;
• Siemens 1L00M + 95128 / 95256 CAN (BSI-S0X-00); EEPROM 95128 / 95256 R / W, show PIN, 9S12DP512 FLASH R / W;
• Continental SC667050 + 95256 CAN (BSI-Q0X-00); EEPROM 95256 R / W, show PIN, SC667050 FLASH R / W;
• Valeo 4L00M + 95128 / 25128 CAN (BSI2004-P0X-00); EEPROM 95128 / 25128 R / W, show PIN, 9S12DP512 FLASH R / W;
• Valeo 2M48H + 24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R / W, show PIN, 9S12XEP768 FLASH R / W;
• Valeo SC667152 + 95256 CAN (BSI-N0X-00); EEPROM 95256 R / W, show PIN, SC667152 FLASH R / W;
• Johnson Controls easy CAN4 + 29LV400 + 95128 CAN (BSI2004-H0X); EEPROM 95128 R / W, show PIN, 29LV400BB FLASH R / W;
• Johnson Controls easy CAN4F1M-32 + 95128 CAN (BSI04EV-K0X); EEPROM 95128 R / W, show PIN, easy CAN4F1M-32 FLASH R / W;
• Johnson Controls SPC560B60 + 95128 CAN (BSI04EV2-KEX); EEPROM 95128 R / W, show PIN, SPC560B60 FLASH R / W

2. FORD BCM

• FORD LEAR BCM MC9S12XEP768 DATA & PROGRAM FLASH R / W.

3.OPEL/GM ECU types

• ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• E37 M58BW016DB FLASH R/W.CAN (OBD);
• E38 AM29BDD160GB FLASH R/W.CAN (OBD);
• E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• E67 S29CD016 FLASH R/W.CAN (OBD);
• (BOSCH)E84 MPC5676 FLASH R/W.CAN (OBD);EEPROM DUMP VIEWER, EDITOR.
• DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
• DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
• DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);

4.OPEL BCM types:

• OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
• DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
• DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
• OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
• OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
• OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
• OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
• OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

5.OPEL/GM TCM Reading/writing types:

• TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W;
• TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W.

6.OPEL/GM EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W.
