MPPS Flash tool is a powerful ECU Tuning adapter,that allows you to read and write ECU through OBD2 Port. It offers quickly reading / writing operations and checksum support.MPPS V22 Tool covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delphi, Siemens, Marelli, Delco, Sagem, Trionic and many others…
MPPS Flash tool Highlights:

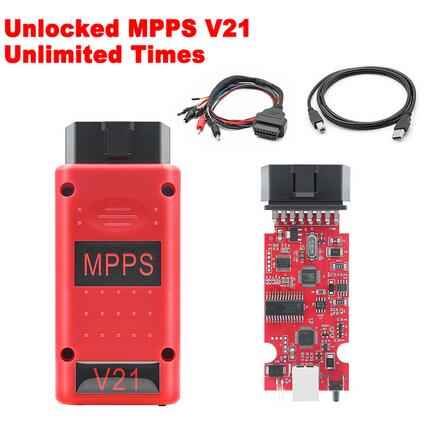

- Blue one V22.2.3.5 ,MPPS Red one is V21
- Support System: WIN10, WIN7 (64bit)
- Unlimited Times use and Unlocked
- Multi-Languages
MPPS Chip Tunning V22 New addly :
- Added new FRF decryption in Tricore Boot.
- Added PSA ME7.4.5 K-line/CAN and Special mode.
- Added Opel Vauxhall ME9.6 and Renault Delphi DCM 1.2 Can.
- Added VAG Simos 6.2/6.3,EDC17 Slave ecu’s both TP2 and UDS.
- Corrected a problem with Delphi E87 checksum.
- Added new antituning search for EDC17 ecu’s.
- Various corrections and fixes.
MPPS V22 Support Vehicle :
- Alfa Romeo ,Audi,Bmw,Chevrolet,Chrysler,Citroen,Ducati ,Fiat,Ford,
- Generic Bosch,Holden,Hyundai,Isuzu,Iveco,Kia ,Lancia,Land Rover,LondonTaxis
- MCC-Smart ,Mercedes,MiniCooper,Mitsubishi,Nissan,Opel ,Peugeot ,Porsche,Renault
- Saab ,Seat ,Skoda,Suzuki ,Vauxhall,Volkswagen,Volvo.
- Workable List
MPPS V22 Additional features:
- Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
- Selectable full / partial reading and writing when the ECU allows this function.
- Selectable reading / writing speed.
- Writing “changes only” function for faster programming (when supported by the ECU).
- Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
- Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
- Boot mode support for ECU’s with C167 and ST10 processors.
- EEprom read/write functions for some ECU’s are included.
Module(Tricore Fuctions need Option Tricore adapter)
- TPROT / DS check feature, for testing if TPROT is active without opening ECU
- Auto detects ECU and processor type. No need to select from list, everything is automatic!
- Read/Write of all memories Eeprom, Irom, Xrom (where possible)
- Patch function for OBD Flashing of TPROT ECU’s in boot mode (supports only VAG at the moment)
- Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.
- Checksum Correction supported for Bosch MEDC17 irom and eeprom.
- Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom
- Support for Bosch Service Mode to read password on ECUs using TP12+
- Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

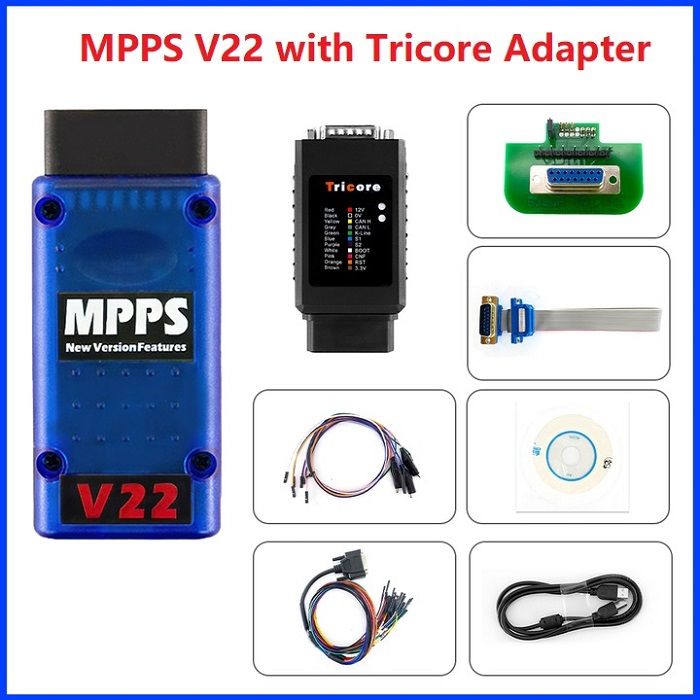

MPPS V22 Chip Tunning Packing:

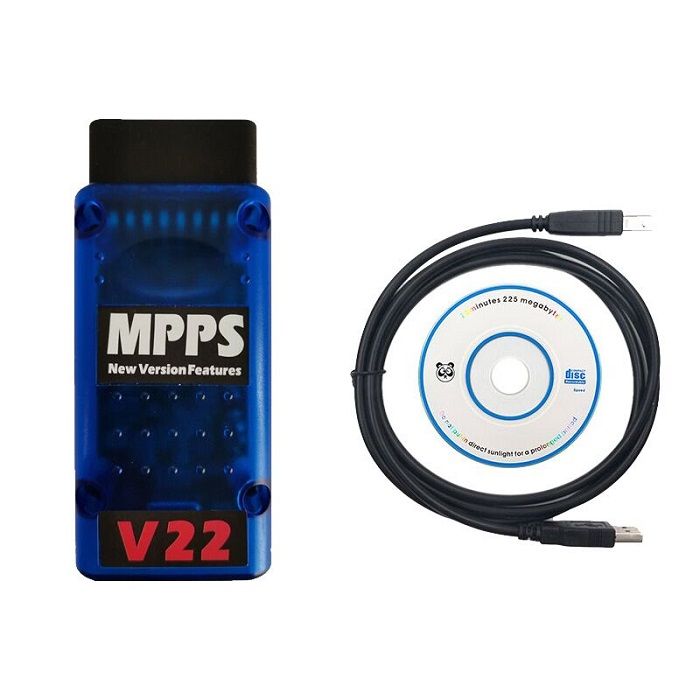

- MPPS V22 Cable
- USB cable

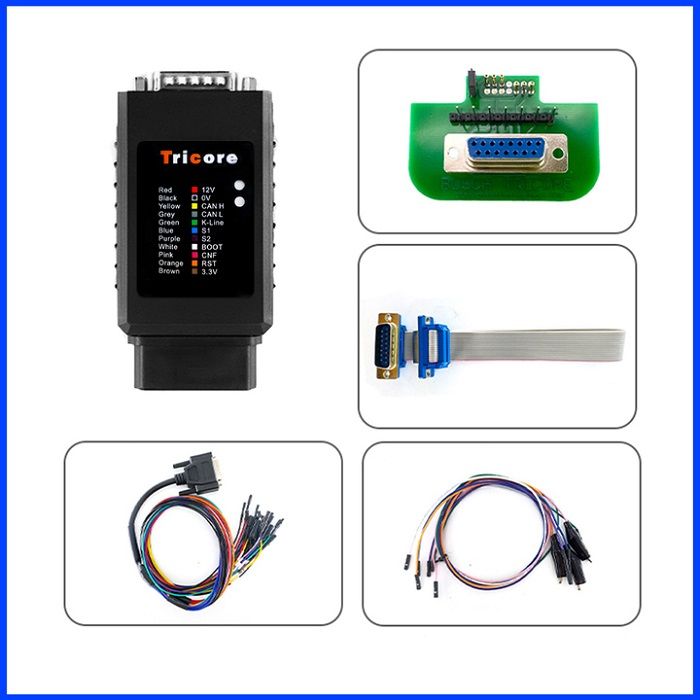

- Options Tricore Adapter kit:
- TRICORE OBD interface
- BOSCH TRICORE Adapter
- DB15 Bench cable
- TRICORE 6pin cable
- TRICORE DB15 cable
