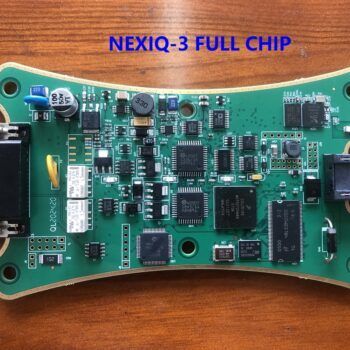

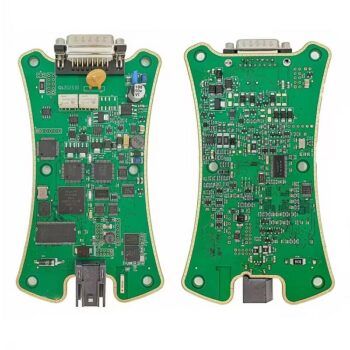

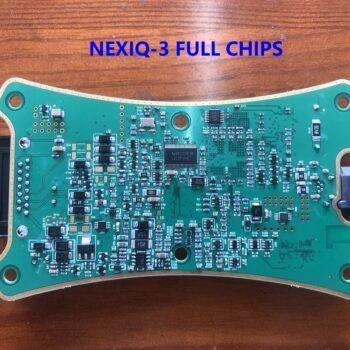

NEXIQ3 USB Link Pass-Thru Truck Diagnostic Tool Full Chips

NEXIQ3 USB Link is a Passthru Truck Diagnostic Interface and Compatible with Many Diesel Software package ,That including Volvo, Hino, Perkins, CAT, Nissan…etc.It will diagnose Engines, Transmissions, ABS, Instrument Panels And More.NEXIQ2 Truck Scanner will be your good helper for Heavy-Duty, Light-And Medium-Duty Trucks, CONSTRUCTION EQUIPMENT Like (Wheel Loader, Articulated Hauler And Excavator), Genset.

NEXIQ3 USB Link Notice:

1. This is clone ones NEXIQ-3 made in China ,You can not udpate it .Otherwise it will locked
2. Full chips with Best Quality ,Support Volvo Trucks.
3. With Diesel Software on Flash Driver.Volvo PPT Software Disk pay extra 40USD.
4. Bluetooth +USB connection.
5. It won’t support newest DOIP/CAN-FD Protocol.

Vehicle Network Protocol Support:

• CAN / J1939 / ISO15765 – 250K, 500 K, 1M b/s with Auto Baud detection(3 channels)
•  Single wire CAN (SWCAN)
•  ISO 11898-3 Fault Tolerant CAN (FTCAN)
• J1708
• J1850 VPW (Class 2)
• J1850 PWM (SCP)
• ISO 9141 / KWP2000 (ISO 14230) K/L line
• ALDL 9600 and 8192 baud
•  ATEC 160 baud

Vehicle Communication API

• RP1210 a/b/c
• J2534 (2004 draft)
• J2534-1 partial implementation

Heavy-Duty Truck Diagnostic workable List:

1. VOLVO TRUCK and BUS: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
   BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY,B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX,
2. MACK TRUCKS: V-MAC I, V-MAC II, V-MAC III, V-MAC IV, Service Diagnostic
3. VOLVO CONSTRUCTION EQUIPMENT :
   Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
   Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
   Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B,EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
   Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990
4. Navistar: ALL Diamond Logic Builder (DLB) ServiceMaxx
5. International: ALL Intune, MD32
6. Freightliner: ALL ServiceLink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA, 4900SA,4900EX.
7. HINO: ENGINE:300SERIES, 500 SERIES, CR03_J08E, CR03_J05D, COMMONRAIL(J05E), J05D_US, J08E_US,P11C,VCS, Hibrid, Inverter, Brake(ABS), AT_45043LE
8. ISUZU_GMC: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L 6HK1 Engine
   Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine
   GM: W3500, W4500, W5500, WT5500, W5500 HD,with 5.2L Diesel Engine Only,T6500,T7500, T8500

NEXIQ3 USB Link Package List:

• NEXIQ-3 USB LINK Interface
• 9-Pin Deutsch Adapter
• J1962 Adapter, 16-Pin OBD II
• USB cable
• Options Cables:

1. 402048 6- and 9-pin Deutsch Adapter
2. 442022 Volvo 14-Pin Adapter
3. 442020 Volvo 8-Pin Adapter
4. 442021 Komatsu 12-pin Adapter
5. 448015 CAT 9-Pin Adapter
6. 441033 3-pin Deutsch Adapter(with male and female connector)
