Perkins EST diagnostic tool 2021B,Communication Adapter 3

Perkins EST diagnostic tool is the factory Perkins scanner. It’s required to communicate, diagnose and service electronically controlled Perkins engines,That including excavators, trucks, ships, etc. When connected to an ECM, a technician has the ability to diagnose existing and potential problems, configure the product, and obtain data for analysis. Perkins EST 2021B is the “go to” software for working on Perkins engines.Moreover‌,PERKINS Communication Adapter 3 can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels.This communication is established via a J1939 data link.

Three configurations:

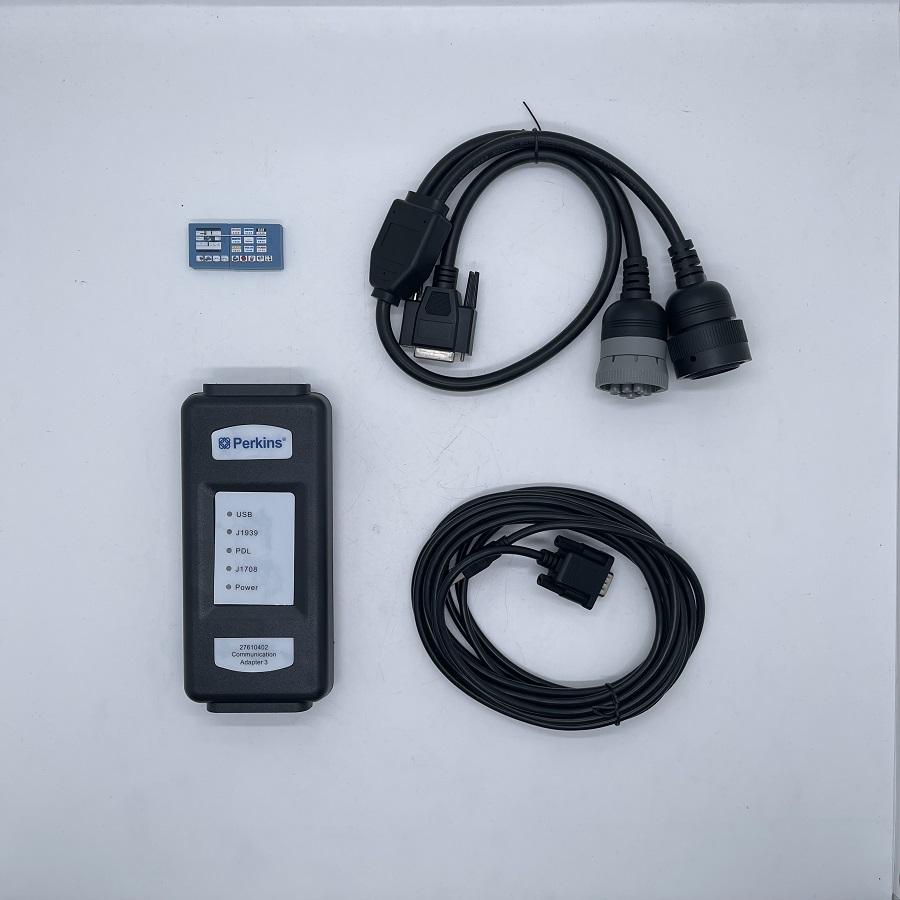

1. Standard kit :Perkins ET3+9/14 PIN adapter+USB cable

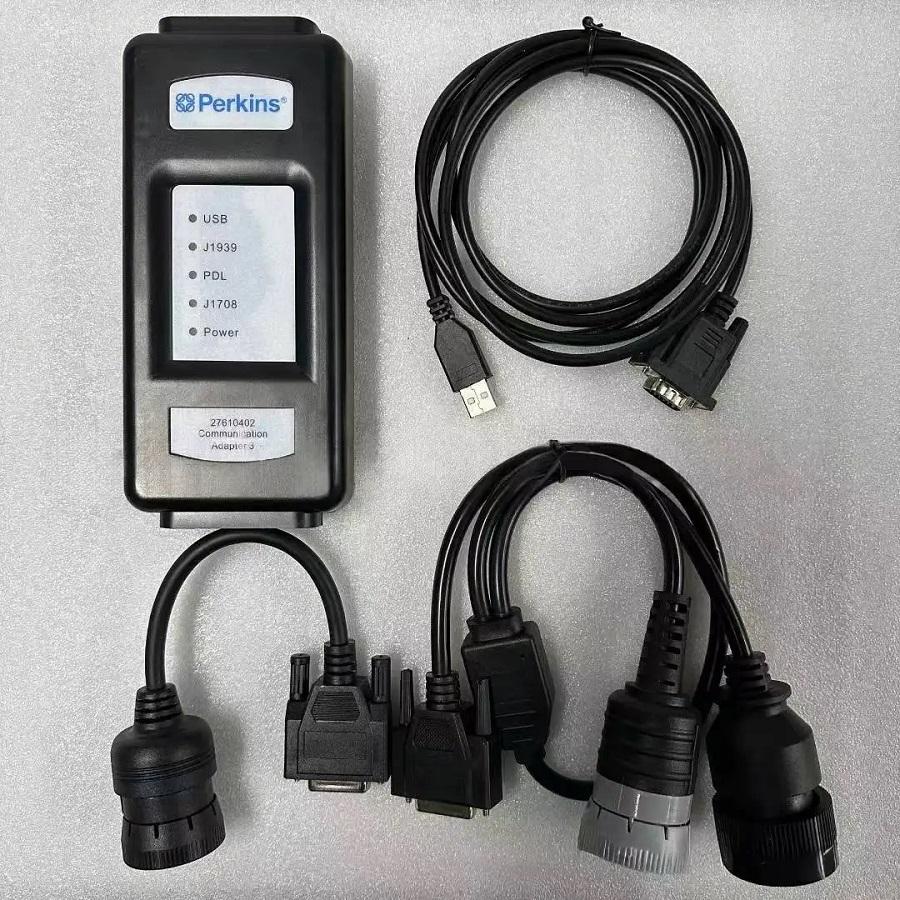

2. Middle Kit:Perkins ET3+9/14 PIN adapter+6 PIN adapter+USB cable

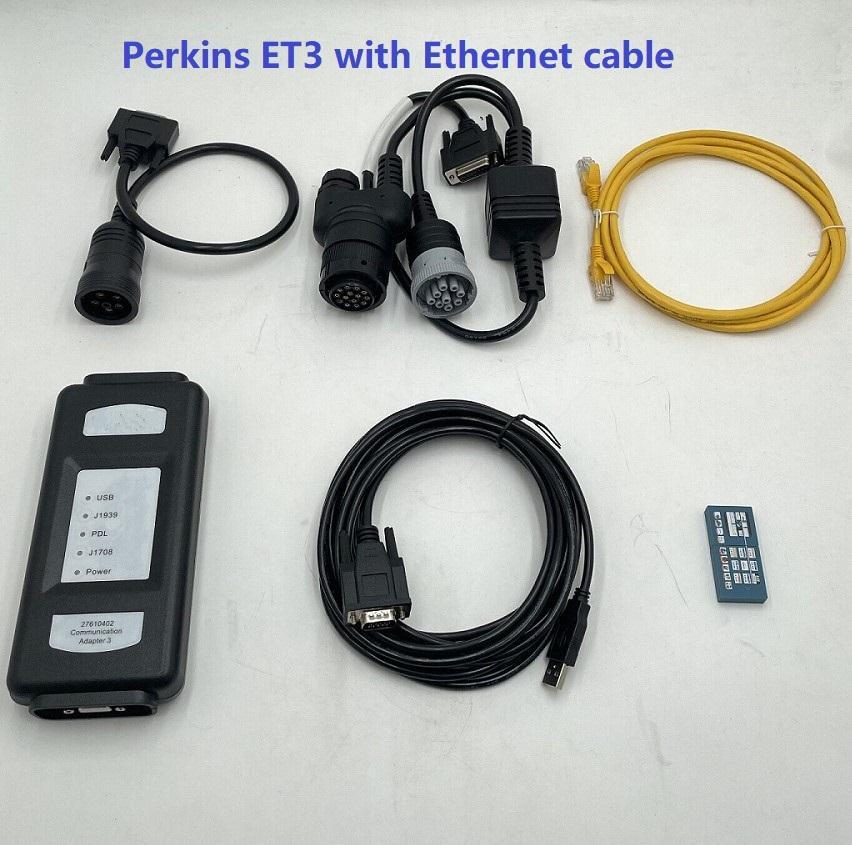

3. Full Kit:Perkins ET3+9/14 PIN adapter+6 PIN adapter+Ethernet cable+USB cable

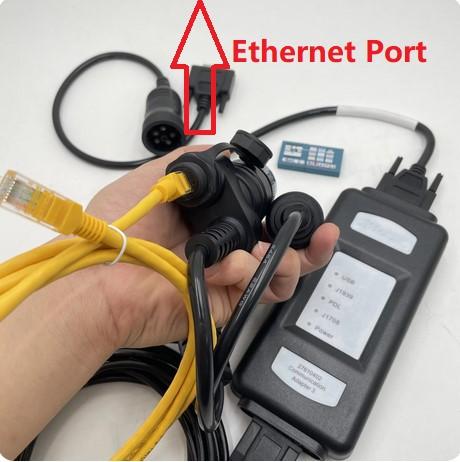

   Once the new Ethernet cable plug into PERKINS Adapter,‌As a result‌,You will get more 10 times faster when do flashing job.

PERKINS EST Software :

• Available Model:E320C 312C 330 E320 E320B E320D
• Language: English,Danish, French, German, Italian, Portuguese, Spanish
• Region: ALL Regions
• Connection: USB(no Wi-Fi )
• Version: EST 2021B by MEGA Download (TIPS2004 Full License)
• Operating systems: Win 10 64-bite

PERKINS EST Diagnostic Tool Functions:

1. Perform diagnostic tests
2. Perform calibrations
3. Change ECM Setting and view the current configuration.
4. View a list of irregularities logged by the ECM (engine control module)
5. View and clear active and logged diagnostic codes
6. Display the status of a group of parameters (temperatures, pressures, etc)
7. Configure and/or change system parameters,Display, graph and record logs of parameter status
8. Override Powerwizard level three passwords
9. Display, view or change the current Configuration File or Base level Flash File
10. Upload, download and save configuration files
11. Print reports and diagnostic results

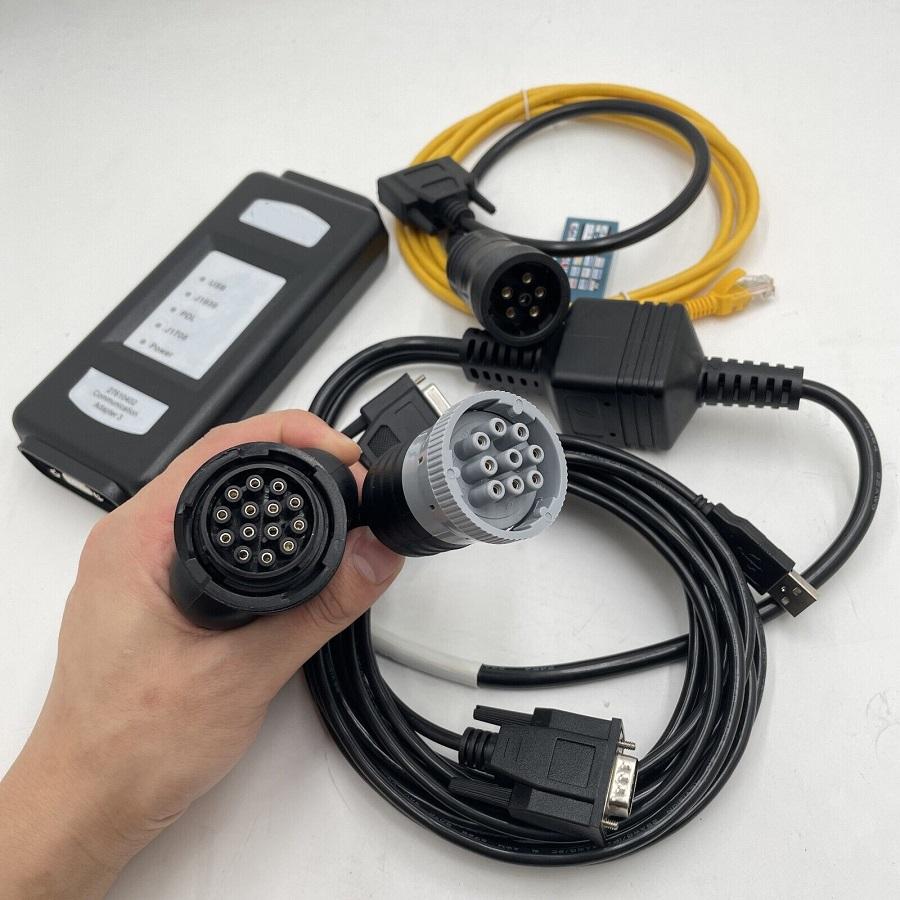

PERKINS ET3 Package:

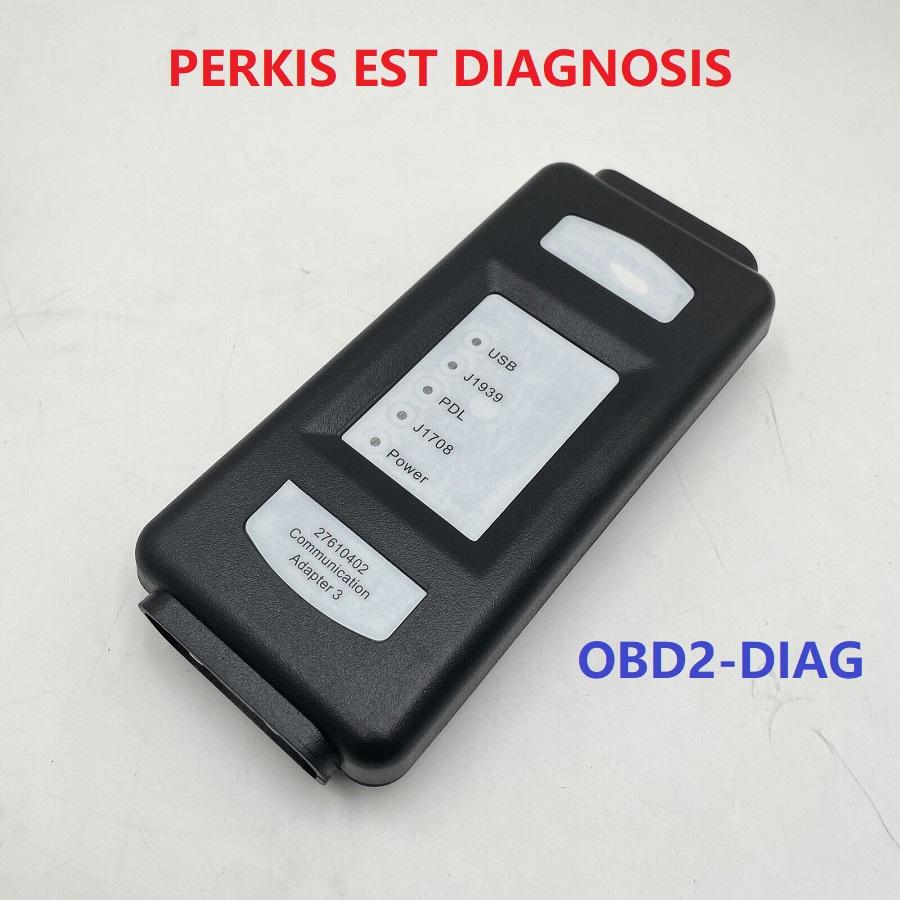

1. PERKINS Diagnostic Adapter
2. J1939/J1708 9+14 pin cable
3. 6 Pin cable
4. Ethernet Cable(Option on Kit 3)
5. USB-RS232 Cable
