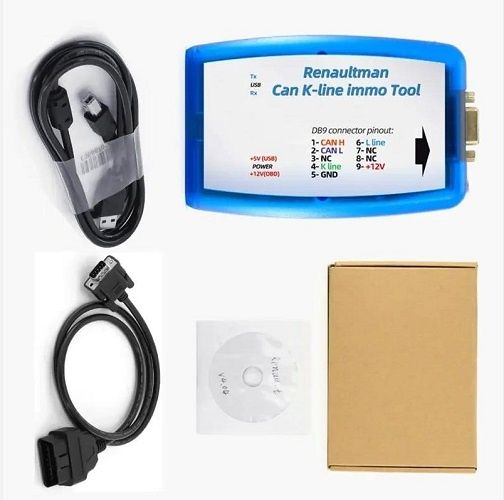

Renaultman IMMO Tool v4.10 for CAN and K-line

Renaultman IMMO Tool has been designed to read and program Renault ECUs through OBDII Port,which coverage from 1996 Year to 2017.Around 90% functions works by OBDII connector, others can be connected on the bench.That meaning You almost no need to open control unit or de-solder memory IC.

it with various electronic control unit internal memory modification functions, such as Read/Write EEPROM or FLASH, Clear Immobilizer Code, Read Immobilizer Status and Program Cards.‌Moreover‌ the Clear Immobilizer Code function is fully automated.This is clone Renaultman CAN K-Line immo tool which made in CHINA ,not from immo-tools.it

Renaultman IMMO Tool functions :

IMMO:

• Read/Write EEPROM or FLASH
• Clear Immobilizer Code
• Read Immobilizer
• Key/Cards Programming

Advanced functions : change VIN ,Setting Dashboard Language.

Control Units programming:ABS,AIRBAG ,BCM/UCH ,INSTRUMENT CLUSTER,PARKING BRAKE ,and POWER STEERING

RENAULT ECU TOOL supports:

1. EDC15C3 (both CAN-BUS and WIRE immo systems) – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
2. EDC15C13 – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
3. SIRIUS 31H – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
4. SIRIUS 32[N] (both CAN-BUS and WIRE immo systems) – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
5. SIRIUS 34 (both CAN-BUS and WIRE immo systems) – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
6. SIRIUS 35 – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
7. EMS3132 (both CAN-BUS and WIRE immo systems) – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
8. EMS3134 (both CAN-BUS and WIRE immo systems) – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
9. SID301 – Read/Write EEPROM, Read/Write FLASH, Clear Immo Code, Clear IMPACT DETECTED, Read stored mileage
10. SIM32 – Read/Write EEPROM, Read/Write FLASH from HD64F7055, Clear Immo Code
11. SAFIR / SAFIR2 / SFR200 (35 / 55 pin connector) – Read TMS374 EEPROM, Clear Immo Code (car runs without immobilizer code)
12. IAW 6R.20 – Read/Write TMS370 EEPROM
13. IAW 6R.30 – Read TMS370 EEPROM, Clear Immo Code (car runs without immobilizer code)
14. VALEO BII for ESPACE III – Read/Write (9)08AZ60 EEPROM, Read/Write mileage, Clear for Replacement, Read transponder data, Emergency Startup
15. VALEO IMMOBILIZER for LAGUNA I Ph2 (1998-2000) – Read transponder data, Configure, Reset to VIRGIN
16. VALEO IMMOBILIZER for LAGUNA I Ph1 / SAFRANE Ph1 (1995-1996) – Read PINCODE, Reset to VIRGIN
17. INSTRUMENT CLUSTER for ESPACE III (1998-2002) – Reset odometer, Erase RF remote programming by instrument cluster connector
18. SIEMENS IMMOBILIZER for ESPACE III Ph1 (1996-1998) – Read/Write 68HC05B16 EEPROM, read transponder data
19. SIEMENS UCH for MEGANE/SCENIC (’98-’02) – Read/Write 705B32 EEPROM, Read/Write configuration, Learn Keys
20. LAGUNA II, ESPACE IV, VELSATIS, LAGUNA II Ph2, ESPACE IV Ph2, VELSATIS Ph2 – KeyCard Programming, Change VIN. Reset UCH to VIRGIN
21. MEGANE II, SCENIC II, MEGANE II Ph2, SCENIC II Ph2 – KeyCard Programming, Change VIN, Reset UCH to VIRGIN
22. INSTRUMENT CLUSTER for SCENIC II (’04-’08) – Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM
23. CLIO II Ph2-5, KANGOO, TRAFIC, MASTER, VIVARO, MOVANO (-’07) – Read/Write EEPROM 93C66, Key Learning, Change VIN, Reset UCH to VIRGIN
24. KANGOO I, TRAFIC, MASTER, VIVARO, MOVANO (’07-) – Key Learning, Change VIN, Reset UCH to VIRGIN
25. KANGOO II (2007-2012) – Key Programming, Change VIN, Reset BCM to VIRGIN
26. MODUS / CLIO III ELECTRIC POWER ASSISTED STEERING (TRW DAE/PAS) – Clear Immo Code, Change VIN by OBDII, erase DF002 from 24C16 dump, repair CRC
27. MEGANE/SCENIC III ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) – Clear Immo Code, Change VIN by OBDII
28. TWINGO III ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) – Clear Immo Code, Change VIN by OBDII
29. LAGUNA III (2007-2015) – KeyCard Programming, Change VIN, Reset BCM to VIRGIN
30. LAGUNA III / LATITUDE (2007-2015) – Learn ECM / ESCL in protected mode (NEW !)
31. LATITUDE (2010+) – KeyCard Programming, Change VIN, Reset BCM to VIRGIN
32. CLIO III / MODUS – Key Programming, Change VIN, Learn ECM in protected mode, Reset BCM to VIRGIN
33. CLIO III – Card Programming, Change VIN, Reset UCH to VIRGIN
34. MASTER III (2010-) – Key Programming, Change VIN, Reset BCM to VIRGIN
35. WIND (2010-2013) – Key Programming, Change VIN, Learn ECM
36. TWINGO II (2007-2013) – Key Programming, Change VIN, Learn ECM
37. TWINGO (2001-2006), LOGAN (2004-2008), SANDERO I, THALIA, SYMBOL – Key Programming, Change VIN
38. LOGAN, SANDERO, THALIA, SYMBOL (2008-2012), Duster (2010-2012) – Key Programming, Change VIN
39. MEGANE III / SCENIC III (2009-2015) – Card Programming, Change VIN, Reset BCM to VIRGIN
40. MEGANE III / SCENIC III / FLUENCE (2009-2015) – Learn ECM / ESCL in protected mode (IMPROVED !)
41. KOLEOS (2008+) – KeyCard Programming, Change VIN, Reset BCM to VIRGIN
42. EDC17 / MED17 TRICORE EEPROM DUMP CRC – Reset EEPROM dump to VIRGIN, repair block checksums
43. MEGANE III / SCENIC III / FLUENCE / LATITUDE AIRBAG (CONTINENTAL) – Erase CRASH DATA by OBDII / direct connection
44. LAGUNA III AIRBAG (AUTOLIV RC5) – Erase CRASH DATA by OBDII / direct connection
45. TWINGO II (X44) / KANGOO II (X61) AIRBAG (CONTINENTAL) – Erase CRASH DATA by OBDII / direct connection
46. MASTER III / MOVANO-B / CLIO III Ph2 / MODUS Ph2 AIRBAG (AUTOLIV) – Erase CRASH DATA by OBDII / direct connection
47. AIRBAG MODULE WITH SPC560 MCU (CONTINENTAL) – Erase CRASH DATA by OBDII / direct connection
48. MEGANE II / SCENIC II AIRBAG (AUTOLIV ACU4) – Erase CRASH DATA by OBDII / direct connection
49. CLIO II X65 AIRBAG (BOSCH AB8) – Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
50. ESPACE III AIRBAG (SIEMENS) – Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
51. LOGAN X90 / DUSTER H79 AIRBAG (TEMIC-CONTINENTAL) – Erase CRASH DATA, Read EEPROM by OBDII / direct connection
52. KADJAR / TALISMAN AIRBAG (AUTOLIV AC7 with MCU XC2336) – Erase CRASH DATA by OBDII / direct connection (NEW addly on Renault Ecu Tool !)

RenaultMan ECU Tool reviwes :

• I received it today, comes with v4.09 software,tried virgin edc16- good and Crc edc16-good ,also Valeo V40 read ISK
• Looks same as original and so far works correct
