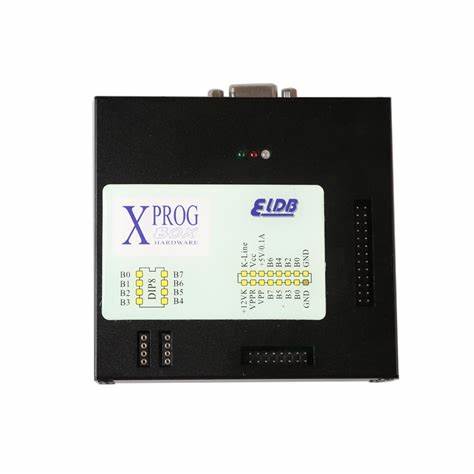

XPROG BOX ECU Programmer, XPROG-M V6.5

The XPROG box is one one famous in-circuit and on-board Automotive Programmer,That supports more than 2000 units (serial EEPROM, MCU ,ECU,DashBoards, Immobilizers, Calculators and others). XPROG-M V6.50 with newest Licenses will work on Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 family MCU’s, Texas Instruments TMS370/TMS374 and more others.

Difference between XPROG BOX V6.5 and V5.55 /V6.26 ?

1. Xprog-M V5.55 is the basic version with standard 18 adapters , V6.12 and V6.5 have 22 adapters.
2. Firmware : Xprog V6.26 is 5.9, XProg-M 6.5 is 6.8 (Last version firmware )
3. Authorized ：Xprog V6.5 with 30 kinds authorized from AUTH0001 to 0030-1,V6.12 from 0001 -0028-2 ,V5.55 from 0001-0025-1

XPROG M ecu programmer V6.12 Authorizations included:

1. AUTH-0028-3 Renesas RL78 Authorized Newly added
2. AUTH-0028-4 Renesas M32C Authorized Newly added
3. AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
4. AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
5. AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
6. AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
7. AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
8. AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
9. AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
10. AUTH-0008 BMW EWS3 authorization
11. AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
12. AUTH-0010 MB ZGS001 authorization
13. AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
14. AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
15. AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
16. AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
17. AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
18. AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
19. AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
20. AUTH-0023-1 MAC7xxx
21. AUTH-0023-2 XC23xx
22. AUTH-0024-1 MC9S12Cxx
23. AUTH-0024-2 MC9S12XE
24. AUTH-0024-3 9S12XE SECURITY
25. AUTH-0024-4 MC9S12HA/HY/P
26. AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
27. AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
28. AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
29. AUTH-0028-1 Renesas V850 Authorized 2017/10/9
30. AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

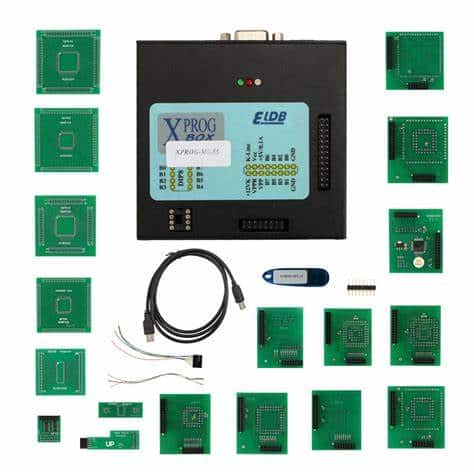

Xprog Box Programmer V6.5 Package List:

Newly Added 4 Adapters:

• ADP-0019 Rev.B
• ADP-0006 M35080 ICP adapter
• QFP64 MC908AZ/AS60 3K85K adapter
• QO18S714

1. ADP-0001 TMS370 PLCC28 programming adapter
2. ADP-0002 TMS370 PLCC44 programming adapter
3. ADP-0003 TMS370 PLCC68 programming adapter
4. ADP-0004 Motorola HC05B/X PLCC52 programming adapter
5. ADP-0005 Motorola HC05B/X QFP64 programming adapter
6. ADP-0006 ST M35080 in-circuit programming adapter
7. ADP-0008 TMS374 family in-circuit programming adapter
8. ADP-0009 MC68HC05V12 programming adapter
9. ADP-0010 TMS374 on-board programming adapter
10. ADP-0011 HC11EA9/E9 programming adapter
11. ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
    Additional adapter for 5M48H P-Flash
12. ADP-0019 Rev.A
13. EWS3 adapter
14. EEPROM adapter
15. QFP28 adapter
16. QFP64 adapter
17. QFP80 adapter
18. QFP112 adapter
19. QFP144 adapter
